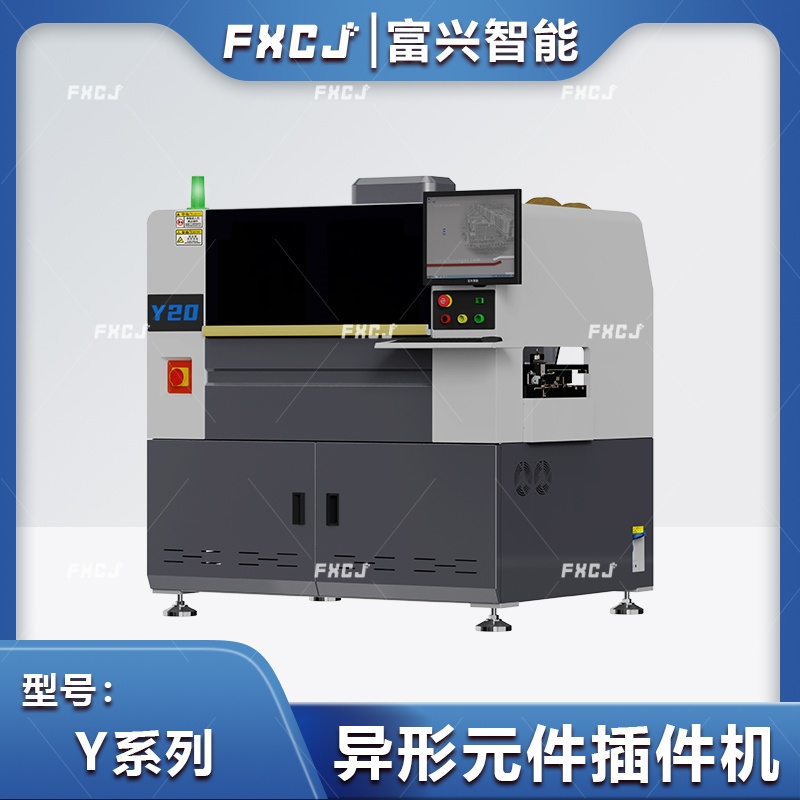

型號 Model No
|
Y10 | Y20 | Y30 | Y40 | Y50 |
|
插裝精度 Insertion Accuracy |
0.01mm | ||||
|
理論速度 Theoretical Speed
|
插件0.4-0.7秒/點，過板3秒/件，Insert 0.4-0.7 sec/pcs, transfer 3 sec/pcs | ||||
|
插裝頭數量 Insertion Head Number
|
1組 1 set | 2組 2 sets | 3組 3 sets | 4組 4 sets | 5組 5 sets |
|
插入方向&跨距 Insertion Angle & Lead Pitch
|
標配：360°，任意角度插件 Std. :360°,insert at any angle |
||||
|
元件種類&規格 Component Type & Size
|
客供料來料定制 Customization with customer-provided components |
||||
|
PCB尺寸 PCB Size
|
過板尺寸最大：L460*W290mm 左→右 Max. passing size: L460*W290mm L→R |
||||
|
插件范圍最大： L360*W280mm 左→右 Max. insert range: L360*W280mm above L→R |
插件范圍最大： L330*W280mm 左→右 Max. insert range: L330*W280mm above L→R |
插件范圍最大： L260*W280mm 左→右 Max. insert range: L260*W280mm above L→R |
插件范圍最大： L420*W280mm 左→右 Max. insert range: L420*W280mm above L→R |
插件范圍最大： L350*W280mm 左→右 Max. insert range: L350*W280mm above L→R |
|
|
PCB厚度&傳送高度 PCB Thickness& Conveying Height
|
厚度0.79～2.36mm，標準：1.6mm，高度900±20mm Thickness 0.79～2.36mm,std. 1.6mm, height 900±20mm |
||||
|
使用電源&功率 Power Souerce
|
220V，AC，50/60Hz ，Apprx.約0.4kW | ||||
|
使用氣源&用氣量 Air Source
|
0.6~0.8MPa,20m3/h | ||||
|
使用環境溫度 Use Temp.
|
10~26℃ | ||||
|
設備噪音 Mch. Noise
|
Apprx.約 65 dB | ||||
|
設備重量 Mch. Weight
|
Apprx.約900kg，不含供料器 excluding feeder | Apprx.約1000kg，不含供料器 excluding feeder | |||
|
設備尺寸含供料器 Machine Dimension
|
L1.53×W1.70×H1.60m 可定制 Customizable | L1.75×W1.74×H1.60m 可定制 Customizable | |||
|
控制系統 Control Sys.
|
Windows操作系統中英文界面、視窗平臺、液晶顯示 Windows OS with Chinese/English Interface, Windows Platform,LCD Display |
||||
|
驅動系統 Drive Sys.
|
AC伺服，AC馬達 AC servo,AC motor | ||||
|
底座驅動方式 Base Drive Mode
|
電磁閥+精密氣缸，Solenoid valve+precision cylinder | ||||
|
PCB輸送方式 PCB Conveying Mode
|
標配：左→右，全自動，選配：右→左，全自動 Std.: L → R, Fully Automatic,Opt.: R→ L, Fully Automatic | ||||
|
數據輸入方式 Data Input Mode
|
USB接口輸入，EXCEL文檔格式，USB input,Excel format | ||||
|
AI智能圖像掃描系統 AI Vision Sys.
|
高精度視覺自動取像，人機對話，操作可視。 High-precision automated imaging for intuitive, visual operation. |
||||
|
AI智能識別編程系統 AI Programming Sys.
|
AI輔助快速編程，2分鐘完成加工程序制作。 Generates insertion programs in as fast as 2 minutes. |
||||
|
AI智能Mark識別補償系統 AI Mark Compensation Sys.
|
自動識別Mark點，AI算法補償定位偏差。 Auto-locates fiducial marks and compensates for positioning deviation. |
||||
|
AI智能防呆系統 AI Error-Proofing Sys.(Poka-Yoke)
|
誤操作坐標超范圍自動識別，系統鎖定停機并提示。 Automatically detects out-of-specification coordinates, system lockout with alerts. |
||||
|
AI智能Badmark識別系統 AI Badmark Recognition Sys.
|
1秒識別壞板并跳過，節省時間與物料。 Identifies and skips defective panels in 1 second, saving time and material. |
||||
|
AI智能防錯料系統 AI Component Verify Sys.
|
選配：料站二維碼與物料條碼識別比對，OK開機，NG報警。 Opt.:Cross-checks reel & component codes; runs on match, alarms on mismatch. |
||||
|
AI實時數據跟蹤系統 AI Real-Time Monitoring Sys.
|
實時追蹤生產數據，全程可視。 Tracks and visualizes production data across the entire process. |
||||
|
MES管理系統 MES Integration Sys.
|
選配：實時上傳生產數據，平臺聯動，輔助管理。 Opt.:Real-time data upload for platform synergy and management support. |
||||
|
遠程技術支持 Remote Support Sys.
|
工程師在線遠程指導，快速排查與解決問題。 Online engineer guidance for rapid troubleshooting and resolution. |
||||
